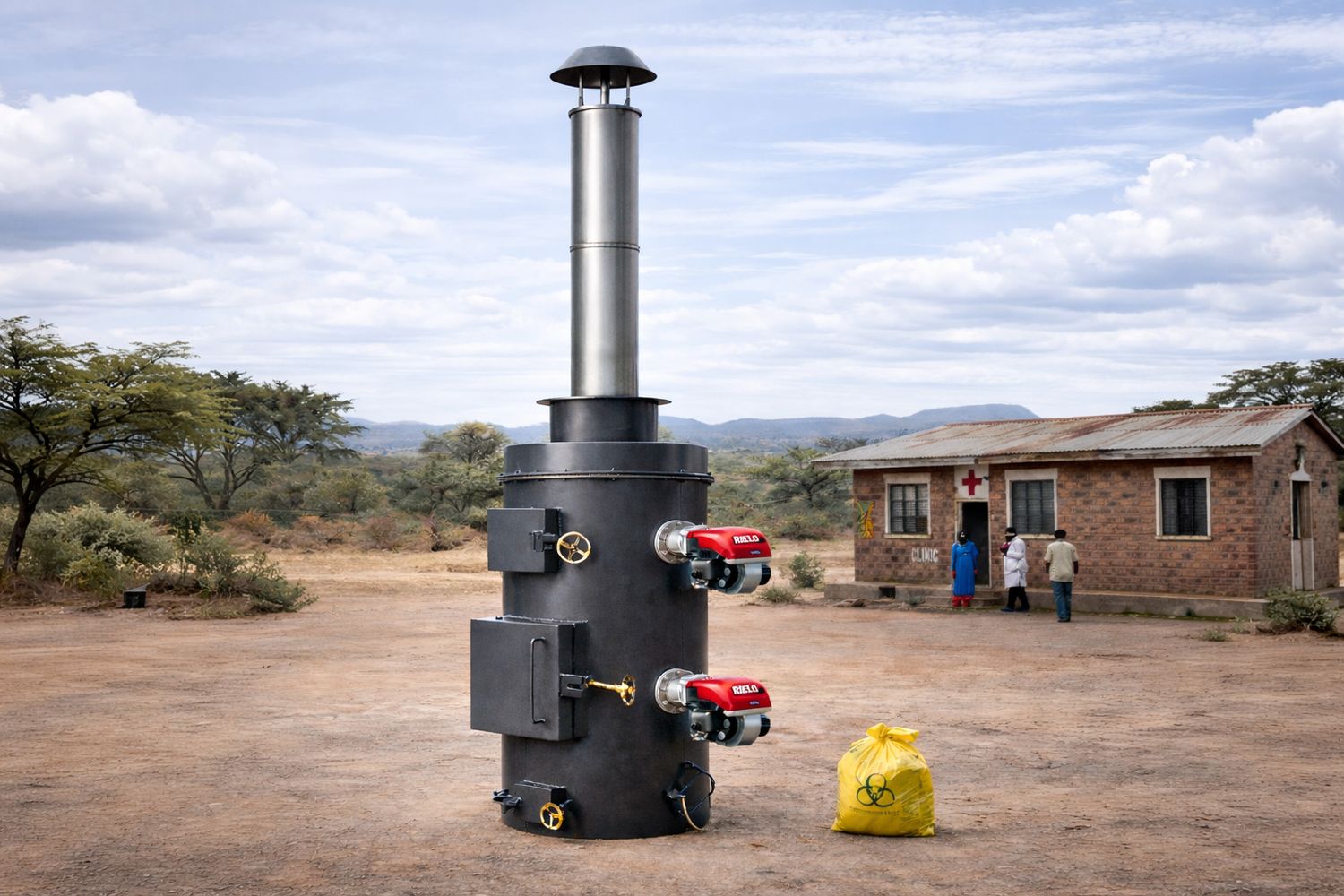

Waste Incinerator Economic Model TS-50S

TS-50S Vertical Small-Scale Waste Incinerator

Simple Design Economic Model Reliable Performance

1. Product Overview

The TS-50S is a small-scale vertical waste incinerator developed and manufactured by HICLOVER, designed as a simple and cost-effective solution for basic waste treatment needs.

Featuring a vertical structure with an internal grate, the TS-50S requires a small footprint, making it suitable for locations with limited space or basic infrastructure.
This model focuses on essential incineration functions, stable operation, and ease of maintenance, while keeping the overall investment cost low.

The TS-50S is particularly suitable for underdeveloped regions, small medical facilities, remote sites, and temporary or basic waste disposal applications, where simplicity, durability, and affordability are key requirements.

2. Structural and Design Features

Vertical Furnace Design
The upright configuration minimizes ground space requirements and simplifies installation.

Built-in Grate System
The internal grate supports stable waste combustion and improves air flow inside the primary chamber, especially under manual feeding conditions.

Simple and Economic Configuration
Designed as an entry-level incinerator, unnecessary complexity is avoided, resulting in lower equipment cost and easier long-term maintenance.

Diesel-Fired Operation
Diesel fuel is widely available and suitable for regions with limited energy infrastructure.

3. Equipment Technical Specifications

Model: TS-50S

Average Burning Rate: 50 kg/hour

Voltage: 220 V

Installed Power: 0.5 kW

Fuel Type: Diesel oil

Burner: Italy brand burner

Feed Mode: Manual

Fuel Consumption: Approx. 10 kg/hour (full-load operation)

Dimensions and Capacity

External Dimensions (Main Body): Ø110 × H 200 cm

Primary Chamber Internal Size: Ø80 × H 90 cm

Primary Combustion Chamber Volume: 450 liters

Post-Combustion Chamber Volume: 300 liters

Feeding Door Opening: 45 × 45 cm

Chimney Height: 3.0 m

Oil Tank Capacity: 100 liters

Gross Weight: Approx. 1,400 kg

Chamber Construction

Chamber Material: Refractory Concrete
The refractory lining provides good thermal resistance, durability, and suitability for continuous high-temperature operation.

4. Operating Technical Specifications

Operating Temperature: 800 – 1,000 °C

Refractory Temperature Rating: 1,350 °C

Flue Gas Residence Time: ≥ 0.5 seconds

5. Typical Applications

Basic medical waste treatment at small clinics or healthcare points

Waste disposal in underdeveloped or remote regions

Temporary camps, construction sites, and field operations

Projects requiring simple, low-cost incineration solutions

6. Manufacturer and Quality Assurance

The TS-50S is manufactured by HICLOVER, a professional incinerator manufacturer with extensive experience in waste treatment equipment.

Although positioned as a simple and economic model, the TS-50S benefits from:

Proven manufacturing processes

Reliable structural design

Durable materials and components

Consistent quality control standards

This ensures stable operation, long service life, and dependable performance, even under demanding field conditions.
