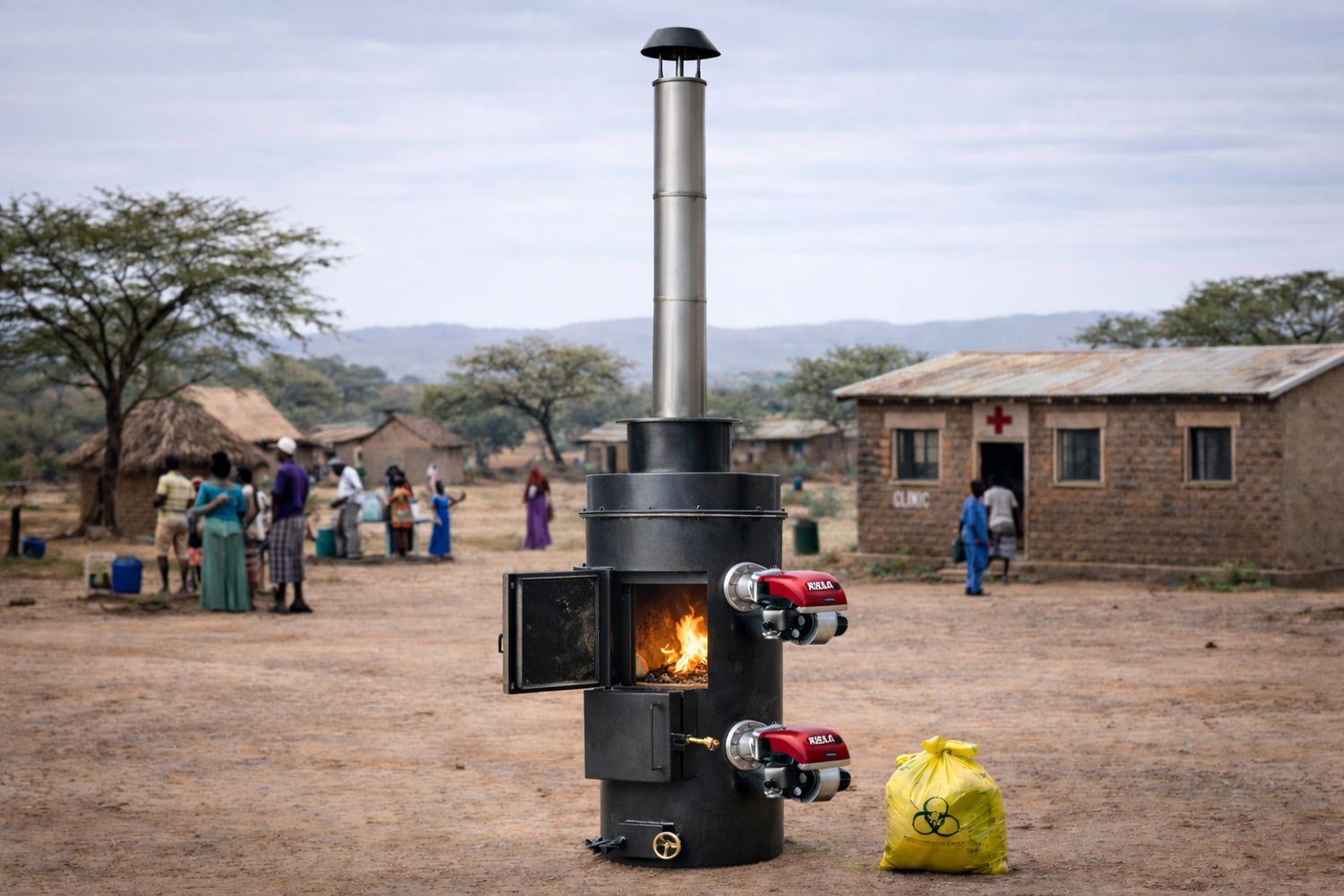

Waste Incinerator Economic Model TS-30S

TS-30S Vertical Small-Scale Waste Incinerator

Compact Design Economic Model Reliable Performance

1. Product Overview

The TS-30S is a compact, vertical small-scale waste incinerator manufactured by HICLOVER, designed as a lower-capacity and more economical alternative to the TS-50S.

With a vertical furnace structure and internal grate, the TS-30S occupies a very small footprint, making it particularly suitable for sites with limited space and basic infrastructure.
This model focuses on simple operation, low investment cost, and reliable long-term use, while maintaining the essential functions required for effective waste incineration.

The TS-30S is well suited for underdeveloped regions, small clinics, rural health posts, temporary camps, and basic waste treatment applications, where affordability and durability are prioritized over complex automation.

2. Structural and Design Features

Vertical Compact Structure
The upright design significantly reduces floor space requirements and simplifies transportation and installation.

Built-in Grate System
The internal grate supports stable waste combustion and promotes better airflow within the primary chamber, particularly suitable for manual feeding operations.

Simple and Economic Configuration
As a smaller, entry-level incinerator, the TS-30S avoids unnecessary complexity, helping to reduce manufacturing cost and simplify maintenance.

Diesel-Fired Operation
Diesel fuel ensures independent operation and easy fuel availability in remote or infrastructure-limited areas.

3. Equipment Technical Specifications

Model: TS-30S

Average Burning Rate: 30 kg/hour

Voltage: 220 V

Installed Power: 0.5 kW

Fuel Type: Diesel oil

Burner: Italy brand burner

Feed Mode: Manual

Fuel Consumption: Approx. 8 kg/hour (full-load operation)

Dimensions and Capacity

External Dimensions (Main Body): Ø90 × H 150 cm

Primary Chamber Internal Size: Ø60 × H 80 cm

Primary Combustion Chamber Volume: 220 liters

Post-Combustion Chamber Volume: 110 liters

Feeding Door Opening: 35 × 35 cm

Chimney Height: 3.0 m

Oil Tank Capacity: 100 liters

Gross Weight: Approx. 1,100 kg

Chamber Construction

Chamber Material: Refractory Concrete
The refractory lining provides good resistance to high temperatures and thermal shock, ensuring durability under continuous operation.

4. Operating Technical Specifications

Operating Temperature: 800 – 1,000 °C

Refractory Temperature Rating: 1,350 °C

Flue Gas Residence Time: ≥ 0.5 seconds

5. Typical Applications

Basic medical waste treatment at small clinics and health posts

Waste disposal in rural or underdeveloped regions

Temporary camps, construction sites, and remote field operations

Projects requiring low-capacity, low-cost incineration solutions

6. Manufacturer and Quality Assurance

The TS-30S is produced by HICLOVER, a professional incinerator manufacturer with extensive experience in small and medium-scale waste treatment systems.

Although positioned as a compact and economic model, the TS-30S is built using:

Proven structural designs

Durable refractory materials

Reliable combustion components

Consistent factory quality control

This ensures stable operation, long service life, and dependable performance, even in challenging operating environments.
