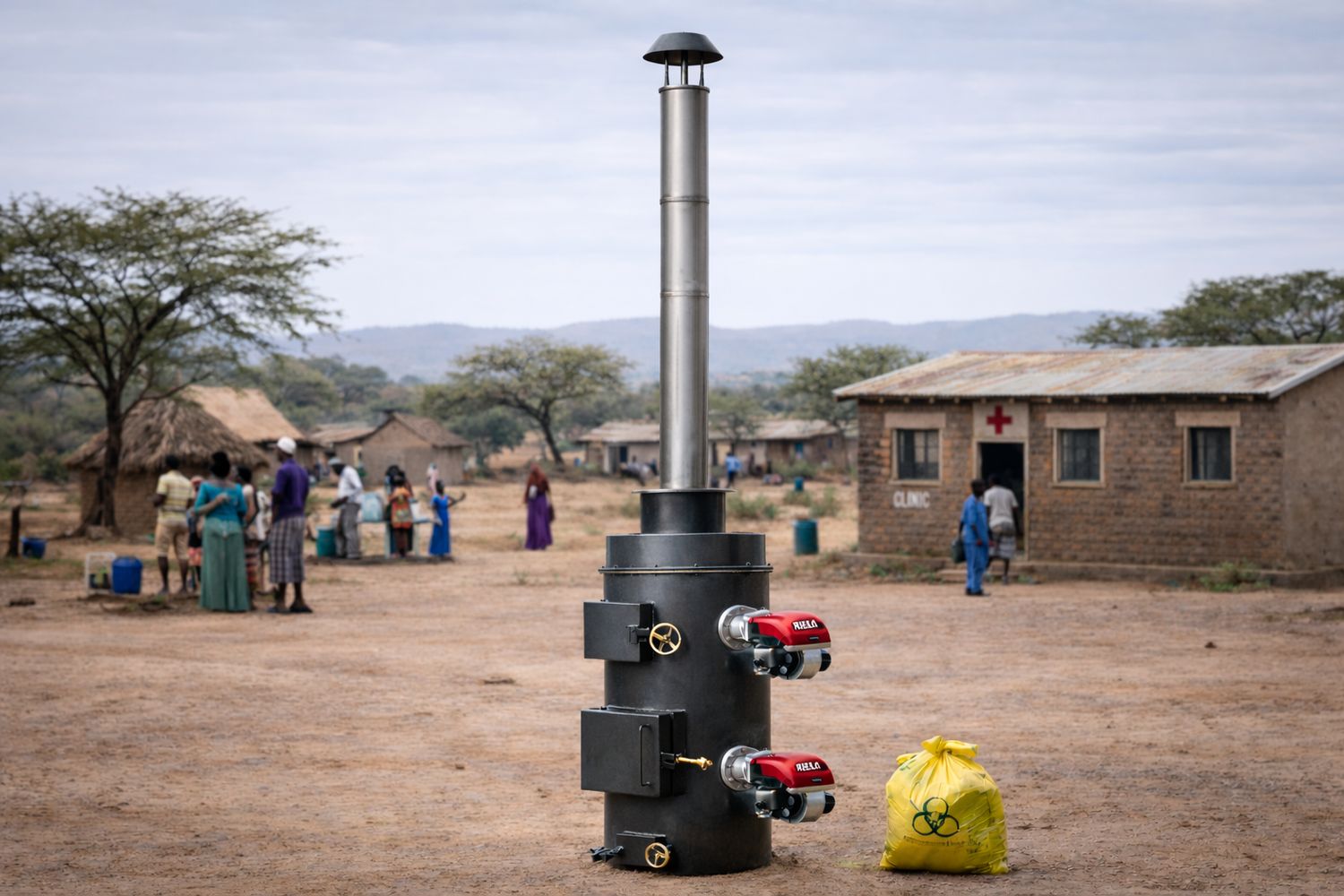

Waste Incinerator Economic Model TS-10S

TS-10S Vertical Small-Scale Waste Incinerator

Ultra-Compact Design Entry-Level Economic Model Proven Reliability

1. Product Overview

The TS-10S is an ultra-compact, vertical small-scale waste incinerator manufactured by HICLOVER, designed for very low-capacity and basic waste treatment applications.

As the smallest model in the TS-S series, the TS-10S emphasizes minimal footprint, low power demand, and low investment cost, while maintaining reliable combustion performance.
Its simple structure and manual operation make it particularly suitable for remote locations, small clinics, laboratories, temporary sites, and low-volume waste disposal needs.

The TS-10S provides a practical and economical incineration solution for users who require basic functionality, durability, and ease of operation, without the complexity of larger systems.

2. Structural and Design Features

Vertical Ultra-Compact Structure
The upright design minimizes installation space and allows flexible placement in confined or temporary environments.

Built-in Grate System
The internal grate supports stable combustion and improves airflow in the primary chamber, well suited for manual feeding operations.

Entry-Level Economic Configuration
Designed as a cost-sensitive model, the TS-10S avoids unnecessary automation, reducing both equipment price and maintenance requirements.

Low Power Requirement
With only 0.3 kW installed power, the unit can operate in locations with limited electrical infrastructure

Diesel-Fired Operation
Diesel fuel ensures operational independence and easy availability, especially in underdeveloped or off-grid areas.

3. Equipment Technical Specifications

Model: TS-10S

Average Burning Rate: 10 kg/hour

Voltage: 220 V

Installed Power: 0.3 kW

Fuel Type: Diesel oil

Burner: Italy brand burner

Feed Mode: Manual

Fuel Consumption: Approx. 6 kg/hour (full-load operation)

Dimensions and Capacity

External Dimensions (Main Body): Ø80 × H 140 cm

Primary Chamber Internal Size: Ø50 × H 70 cm

Primary Combustion Chamber Volume: 130 liters

Post-Combustion Chamber Volume: 80 liters

Feeding Door Opening: 30 × 30 cm

Chimney Height: 3.0 m

Oil Tank Capacity: 100 liters

Gross Weight: Approx. 900 kg

Chamber Construction

Chamber Material: Refractory Concrete
The refractory lining provides sufficient heat resistance and durability for continuous low-capacity incineration applications.

4. Operating Technical Specifications

Operating Temperature: 800 – 1,000 °C

Refractory Temperature Rating: 1,350 °C

Flue Gas Residence Time: ≥ 0.5 seconds

5. Typical Applications

Small clinics, laboratories, and first-aid stations

Low-volume medical or infectious waste treatment

Remote locations and temporary field operations

Training, demonstration, or backup incineration units

Projects requiring very low-capacity and low-cost waste incineration solutions

6. Manufacturer and Quality Assurance

The TS-10S is manufactured by HICLOVER, a professional incinerator manufacturer with extensive experience in small-scale waste treatment equipment.

Despite its entry-level and compact positioning, the TS-10S is produced using:

Proven furnace designs

Durabe refractory materials

Reliable combustion components

Standardized factory quality control procedures

This ensures stable performance, long service life, and dependable operation, even under basic operating conditions.
