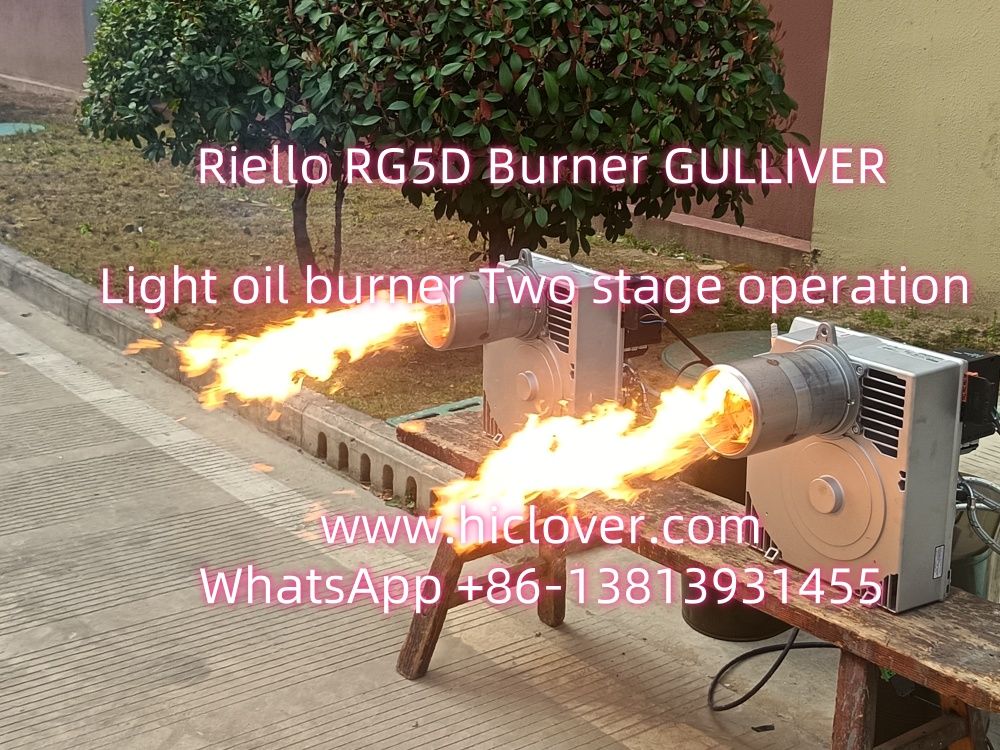

Riello RG5D Burner GULLIVER Light oil burner Two stage operation

Riello RG5D Burner GULLIVER Light oil burner Two stage operation

Output - Thermal power 8 / 12 – 25 kg/h – 95 / 142 – 296 kW

Fuel Light oil, viscosity 4 –6 mm2/s at 20 °C

Electrical supply Single phase, ~50Hz 230V ± 10%

Motor Run current 2.1 A - 2730 rpm - 286 rad/s

Capacitor 8 F

Ignition transformer Secondary 8 kV - 16 mA

Pump Pressure: 8 – 15 bar

Absorbed electrical power 0.47 kW

1 – Pump

2 – Electronic start delaying

device

3 – Control-box

4 – Reset button with lock-out

lamp

5 – Flange with insulating

gasket

6 – 2nd stage air damper

adjustment assembly

7 – Nozzles holder assembly

8 – Photoresistance

9 – Hydraulic jack

10 – 4 pole socket

11 – 2nd stage valve

12 – 1st stage valve

13 – Valve casing assembly
