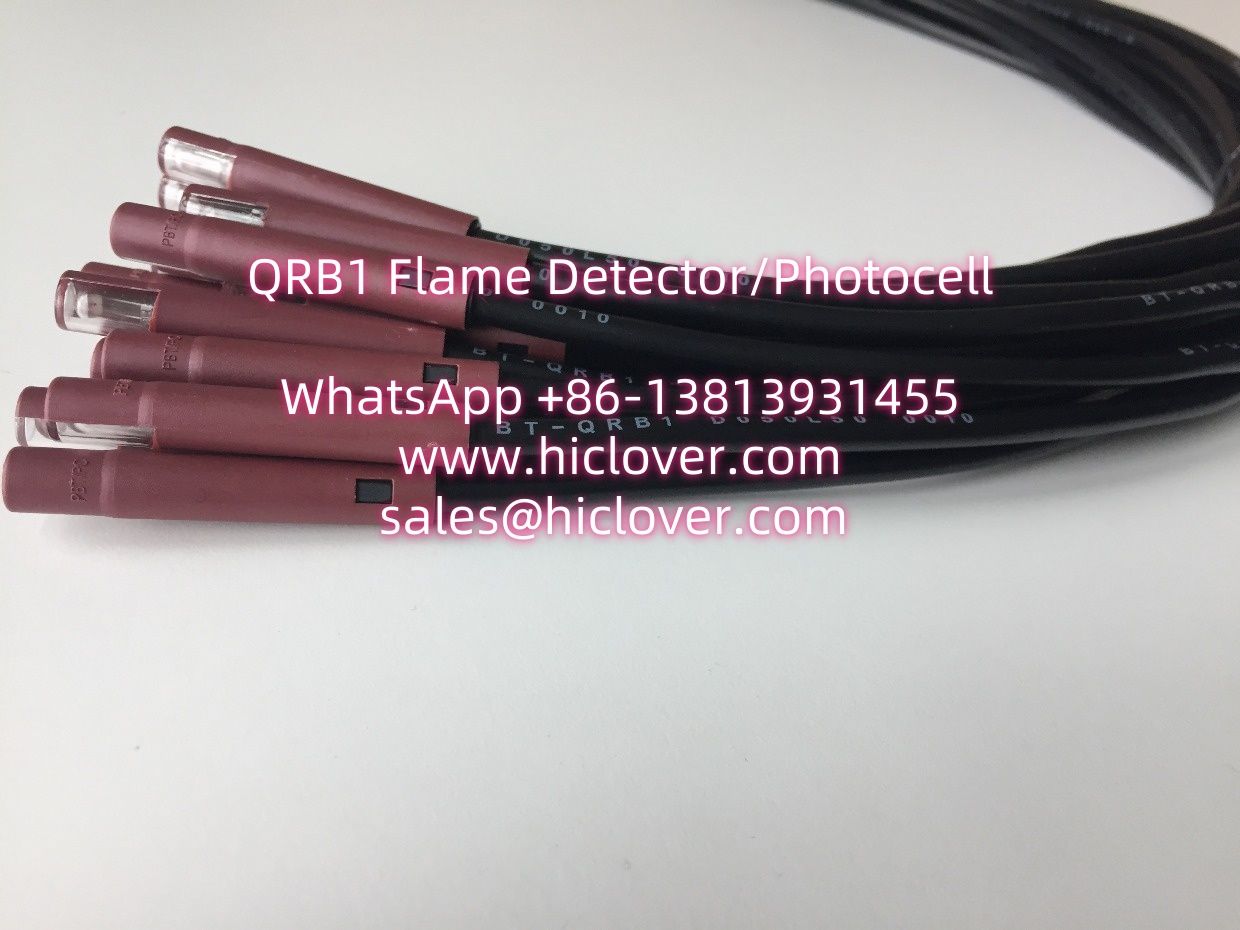

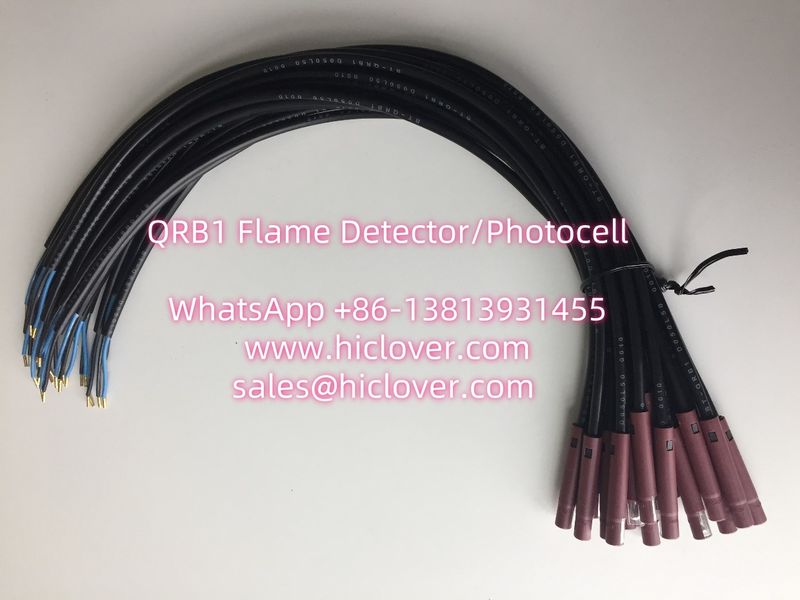

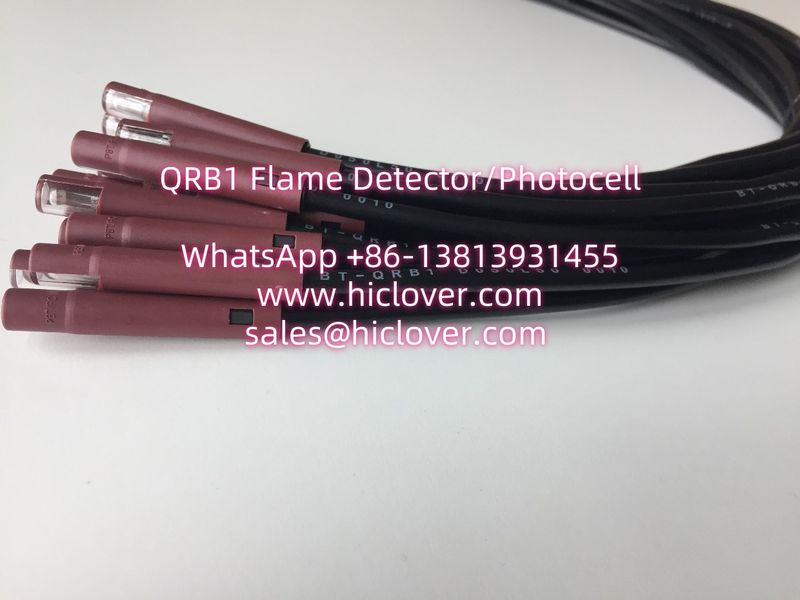

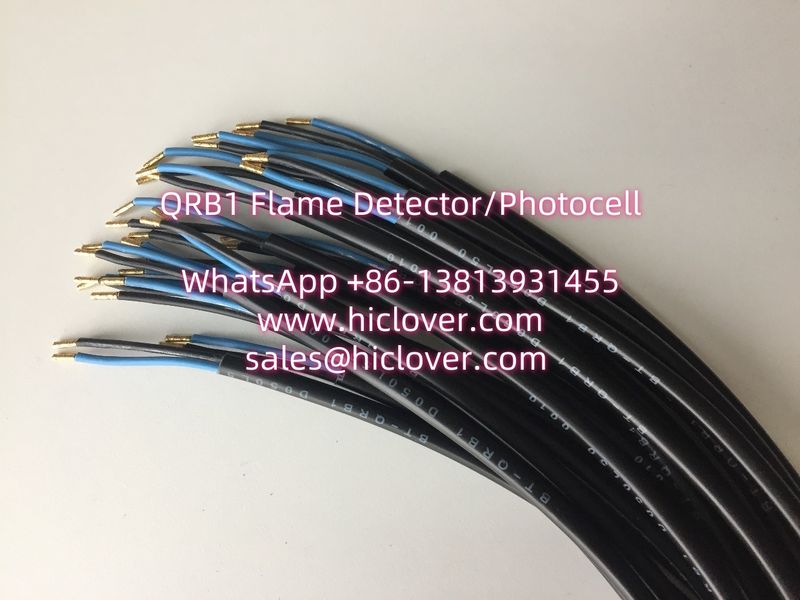

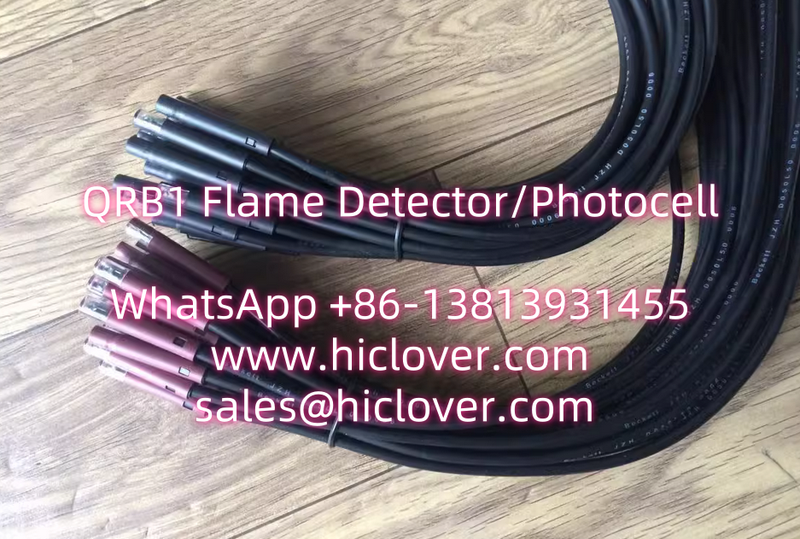

QRB1 Flame Detector/Photoelectric Eye/Photocell/ Diesel Detection Photoelectric Eye

Beckett QRB1 Flame Detector/Photoelectric Eye/Photocell/ Diesel Detection Photoelectric Eye

QRB1 Flame Detector/Photocell: A Reliable Solution for Diesel Burner Safety

Introduction

In industrial combustion systems, ensuring operational safety and efficiency is paramount. The QRB1 Flame Detector, also known as a QRB1 Photocell, is a crucial component in monitoring the presence of flames in diesel burners. This advanced sensing device helps prevent hazardous situations such as fuel buildup and misfiring by providing real-time flame detection.

What is the QRB1 Flame Detector?

The QRB1 Flame Detector is a photoelectric sensor specifically designed for monitoring diesel burner flames. It detects light emitted by the combustion process and signals the burner control unit to regulate burner operation. If the flame is absent or extinguished, the detector alerts the control system, triggering necessary safety mechanisms.

Key Features of the QRB1 Photocell

• High Sensitivity: The QRB1 can detect a flame quickly, ensuring prompt response and reducing downtime.
• Varied Sensitivity Options: Available in low, medium, and high sensitivity models to suit different burner types and applications.
• Durability: Designed to withstand high temperatures and harsh environments, making it ideal for industrial use.
• Compatibility: Works seamlessly with diesel, LPG, and natural gas burners.
• Compact and Lightweight: Easy to install and maintain in various burner configurations.

Applications

The QRB1 Flame Detector is widely used in industries requiring controlled combustion processes, such as:

• Power Plants: Ensuring stable burner operations in electricity generation.
• Industrial Furnaces: Enhancing safety in metalworking and ceramic kilns.
• Boilers: Preventing fuel accumulation in steam and hot water production.
• Heating Systems: Supporting efficiency in commercial and residential heating applications.

How It Works

1. Flame Presence Detection: The photoelectric sensor inside the QRB1 detects the flame’s radiation and converts it into an electrical signal.
2. Signal Transmission: The detected signal is sent to the burner’s control system, verifying the presence of an active flame.
3. Safety Response: If the flame is missing, the control unit triggers an alarm or shuts down fuel supply to prevent accidents.

Choosing the Right QRB1 Model

Different QRB1 models are available based on sensitivity and build:

• QRB1 Low Sensitivity (Black Head): Suitable for stable combustion applications.
• QRB1 Medium Sensitivity (Red Head): Used in standard industrial settings.
• QRB1 High Sensitivity (Imported Glass/Red Head): Ideal for high-precision flame detection.
• High-Temperature Resistant QRB1: Designed for extreme heat environments.

Conclusion

The QRB1 Flame Detector/Photocell plays a crucial role in diesel burner safety and efficiency. By ensuring reliable flame detection, it prevents fuel wastage, enhances operational reliability, and mitigates safety hazards. Selecting the right QRB1 model for your application ensures optimal performance and peace of mind in combustion-based industrial processes.
