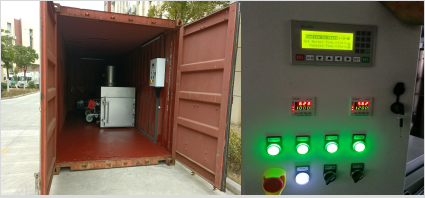

Pet Cremation Incinerator Mobile Type
Intelligent Save Fuel Function
Incinerator Items/Model |
HICLOVER TS50(PLC)
|
Burn Rate (Average) |
30-50 kg/hour |
Feed Capacity(Average) |
50-100kg/feeding |
Control Mode |
PLC Automatic |
Intelligent Sensor |
Continuously Feeding with Worker Protection |
High Temperature Retention(HTR) |
Yes (Adjustable) |
Intelligent Save Fuel |
Yes |
Primary Combustion Chamber |
560L |
Internal Dimensions |
100x80x70cm |
Secondary Chamber |
280L |
Smoke Filter Chamber |
Yes |
Feed Mode |
Manual |
Voltage |
220-240V |
Power |
0.7Kw |
Burner Type |
Italy Brand |
Oil Consumption (kg/hour) |
12-16 |
N.Gas Consumption (m3n/hour) |
*** |
Temperature Monitor |
Yes |
Temperature Thermometer |
Corundum Probe Tube, 1400℃ Rate. |
Automatic Cooling |
Yes |
Automatic False Alarm |
Yes |
System Testing Model |
Yes |
Time Setting |
Yes |
Progress Display Bar and Time |
LCD Display |
Automatic Protection Operator(APO) |
Yes |
Oil Tank |
200L |
Oil Tank Stand |
Yes |
Liquid level Display |
Yes |
Feeding Door |
50x50cm |
Chimney |
3Meter |
Chimney Type |
Stainless Steel 304 |
1st. Chamber Temperature |
800℃--1000℃ |
2nd. Chamber Temperature |
1000℃-1300℃ |
Residency Time |
2.0 Sec. |
Gross Weight |
5000kg |
External Dimensions |
230x130x155cm |
1st. Chamber Composition Hot Face |
Thickness: ≥115 mm |
55% of Al203 |
|
1750°C Grade |
|
2nd. Chamber Composition Hot Face |
Thickness: ≥115 mm |
75% of Al203 |
|
1790°C Grade |
|
Chamber Cold Face Material |
High Rate Refractory Ceramic Fiber |
Other Parts Hot Face Refractory |
Heavy Duty with steel fiber |
Burner operation |
Automatic On/Off |
Dry Scrubber |
Including |
Wet Scrubber |
Optional |
Top Loading Door |
Optional |
Paint for outside face |
250°C Grade |
Sealing Material |
Refractory Ceramic Fiber |
Upgrade Containerized Mobile Type |
Optional |
CE Certificate |
CE(2006/42/EC,2014/30/EU |
ISO Certificate |
ISO9001:2015 |
High-tech Enterprise Certificate |
Yes |
Skid-Mounted Incinerator: The Ultimate Portable Waste Management Solution
In today’s fast-paced industrial and environmental landscape, efficient waste management is crucial―especially in hard-to-reach areas. At Hiclover, we are committed to revolutionizing waste disposal with our state-of-the-art incineration systems. Our product lineup includes containerized mobile incinerators, top loading incinerators, automatic incinerators, and specialized units for medical, animal, and other solid wastes. One standout innovation is our Skid-Mounted Incinerator, designed specifically for easy transport and rapid deployment.
Skid-mounted incinerators are engineered to be highly mobile without sacrificing performance. Mounted on robust skids, these incinerators can be quickly relocated to remote industrial sites, emergency zones, or temporary installations. This portability ensures that even in locations lacking permanent waste management infrastructure, effective waste disposal is never compromised.
Key Benefits:
Our Skid-Mounted Incinerator is packed with advanced features to ensure optimal performance, safety, and environmental compliance:
The adaptability of our Skid-Mounted Incinerator makes it an ideal solution for a wide range of applications:
At Hiclover, our focus on innovation, quality, and customer satisfaction sets us apart. Our Skid-Mounted Incinerator is a testament to our commitment to delivering superior waste management solutions that combine portability with high efficiency. When you choose Hiclover, you benefit from:
Ready to integrate a highly mobile and efficient waste management solution into your operations? Learn more about our Skid-Mounted Incinerator and discover how it can transform your waste disposal process:
The Skid-Mounted Incinerator by Hiclover is more than just an incineration unit―it’s a flexible, portable solution designed to meet the unique challenges of waste management in hard-to-reach areas. With advanced technology, customizable features, and robust safety systems, our skid-mounted incinerators ensure that effective waste disposal is accessible wherever you need it most. Choose Hiclover for innovative, reliable, and environmentally responsible waste management solutions and take a decisive step toward a cleaner, more sustainable future.
