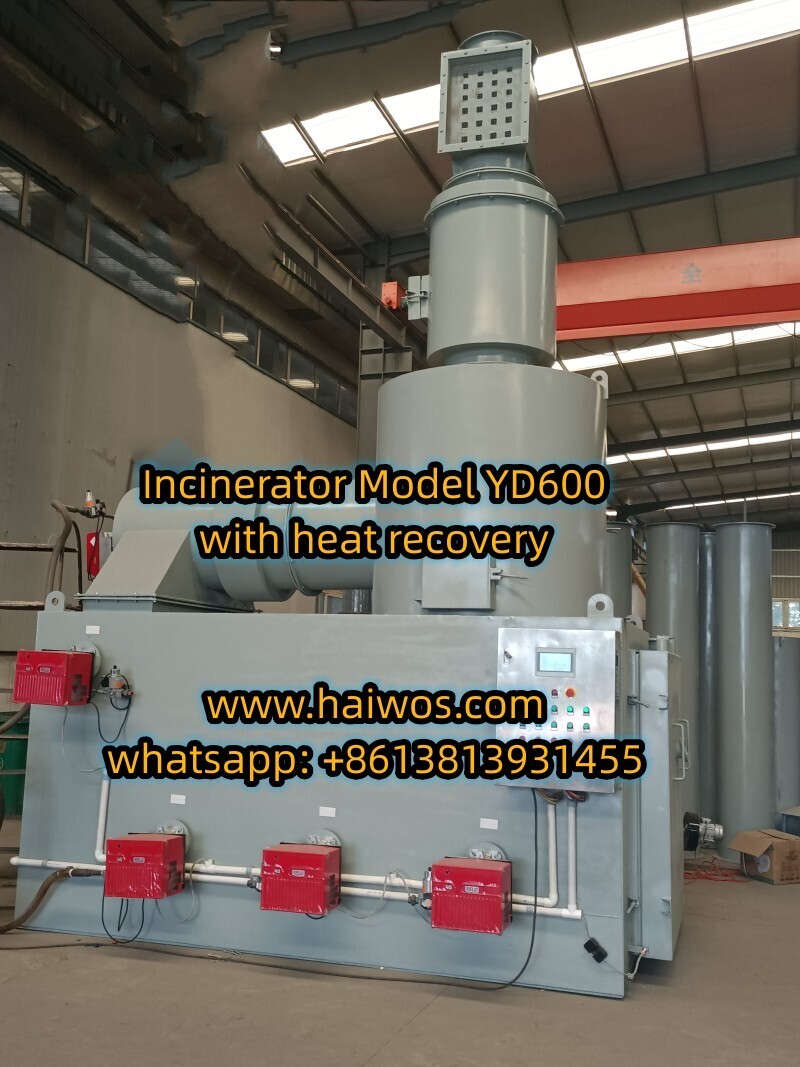

HICLOVER Incinerator Model YD600 with heat recovery 600-800kgs per hour capacity
Incinerator Items/Model |
HICLOVER YD600(PLC) |
Burn Rate (Average) |
600-800 kg/hour |
Feed Capacity(Average) |
11000kg/feeding |
Control Mode |
PLC Automatic |
Primary Combustion Chamber |
5500L(5.5M3) |
Internal Dimensions |
300x147x125cm |
Secondary Chamber |
1500L |
Smoke Filter Chamber |
Yes |
Feed Mode |
Manual |
Voltage |
220V |
Power |
6.0Kw |
Burner Type |
Italy Brand |
Oil Consumption (kg/hour) |
*** |
N.Gas Consumption (m3n/hour) |
Average 100 |
Temperature Monitor |
Yes |
Temperature Thermometer |
Corundum Probe Tube, 1400℃Rate. |
Temperature Protection |
Yes |
Automatic Cooling |
Yes |
Automatic False Alarm |
Yes |
Automatic Protection Operator(APO) |
Yes |
System Testing Model |
Yes |
Time Setting |
Yes |
Progress Display Bar&Timing Display |
LCD Display |
Oil Tank |
400L |
Oil Tank Stand |
190cm Height |
Liquid level Display |
Yes |
Feeding Door |
108x128cm |
Chimney |
14Meter |
Chimney Type |
Stainless Steel 304 |
1st. Chamber Temperature |
800℃--1000℃ |
2nd. Chamber Temperature |
1000℃-1300℃ |
Residency Time |
2.0 Sec. |
Gross Weight |
17000kg |
External Dimensions |
360 x 220 x 470cm |
1st. Chamber Composition Hot Face |
Thickness: ≥115 mm |
55% of Al203 |
|
1750°C Grade |
|
2nd. Chamber Composition Hot Face |
Thickness: ≥115 mm |
75% of Al203 |
|
1790°C Grade |
|
Chamber Cold Face Material |
High Rate Refractory Ceramic Fiber |
Other Parts Hot Face Refractory |
Heavy Duty with steel fiber |
Burner operation |
Automatic On/Off |
Dry Scrubber |
Including |
Wet Scrubber |
Optional |
Top Loading Door |
Optional |
Paint for outside face |
250°C Grade |
Sealing Material |
Refractory Ceramic Fiber |
Upgrade Containerized Mobile Type |
Optional |
CE Certificate |
CE(2006/42/EC,2014/30/EU |
ISO Certificate |
ISO9001:2015 |
High-tech Enterprise Certificate |
Yes |
Self-Contained Incinerator: The Ultimate Independent Waste Management Solution
In today’s evolving waste management landscape, Self-Contained Incinerators are emerging as a highly efficient and independent solution. These units operate without any external support, ensuring that waste treatment remains effective even in remote or challenging environments. At Hiclover, we are proud to offer a comprehensive range of incinerators―including Containerized Mobile Incinerators, Top Loading Incinerators, Automatic Incinerators, Medical Waste Incinerators, Animal Waste Incinerators, and even Pets Cremation Incinerators―designed to meet diverse waste disposal requirements.
A Self-Contained Incinerator is engineered to function as an all-in-one waste treatment unit. It integrates every necessary component―from the combustion system to the emission control modules―within a single, mobile, and self-sufficient structure. This design ensures minimal reliance on external utilities, making it ideal for use in areas such as refugee camps, remote infrastructure sites, crisis management areas, and even oil fields. With our advanced systems, such as the optional wet scrubber system and Italy brand burner, these units guarantee high performance under varied conditions.
Our self-contained incinerators are built with a focus on innovation and efficiency. Below are some of the features that set our products apart:
By incorporating these advanced technical optional items, our self-contained incinerators stand out as robust and reliable solutions designed for diverse waste types, including Medical, Animal, and Solid Waste.
Our incinerators are trusted by a wide range of customers across the globe. They are deployed in locations where independent operation is critical―ranging from medical and environmental facilities to camps, war zones, and industrial sites. Some of our esteemed customers include stakeholders from Afghanistan, Somalia, Oman, East Timor, Ethiopia, Mauritius, Pakistan, Papua New Guinea, Burundi, Australia, Germany, Macau, Indonesia, Eritrea, Moldova, the Netherlands, Kazakhstan, Haiti, Viet Nam, Cameroon, UAE, Kenya, Sri Lanka, Rwanda, Senegal, Mali, Thailand, America, Tanzania, Myanmar, Venezuela, Morocco, Spain, Nigeria, Equatorial Guinea, India, New Zealand, Iraq, and international organizations such as the United Nations, UNDP, and the World Bank.
This broad international experience reflects the durability and adaptability of our systems. Whether you need to process hazardous medical waste or manage general solid waste, our self-contained incinerators offer a versatile solution that delivers consistent performance and peace of mind.
At Hiclover, we understand that every waste management scenario is unique. That’s why our incinerators are customizable to fit specific operational needs. Here are a few ways we tailor our products:
These customizable features allow clients―from local municipalities to international organizations―to address a wide range of waste management challenges effectively.
Choosing Hiclover means opting for innovation, reliability, and global expertise. Here’s what sets us apart:
For inquiries or further details, please use any of the following contact methods:
In summary, the Self-Contained Incinerator represents the pinnacle of independent waste management solutions. With its robust, all-in-one design and advanced technological features, it not only meets but exceeds the rigorous demands of modern waste disposal. Whether for medical, animal, or general solid waste incineration, our systems are engineered to provide reliable, efficient, and environmentally responsible operation.
Explore our extensive range of incinerators at www.hiclover.com and join a global network of satisfied customers who trust Hiclover for their waste management needs. Your solution for independent, self-contained waste incineration is just a call or click away.
