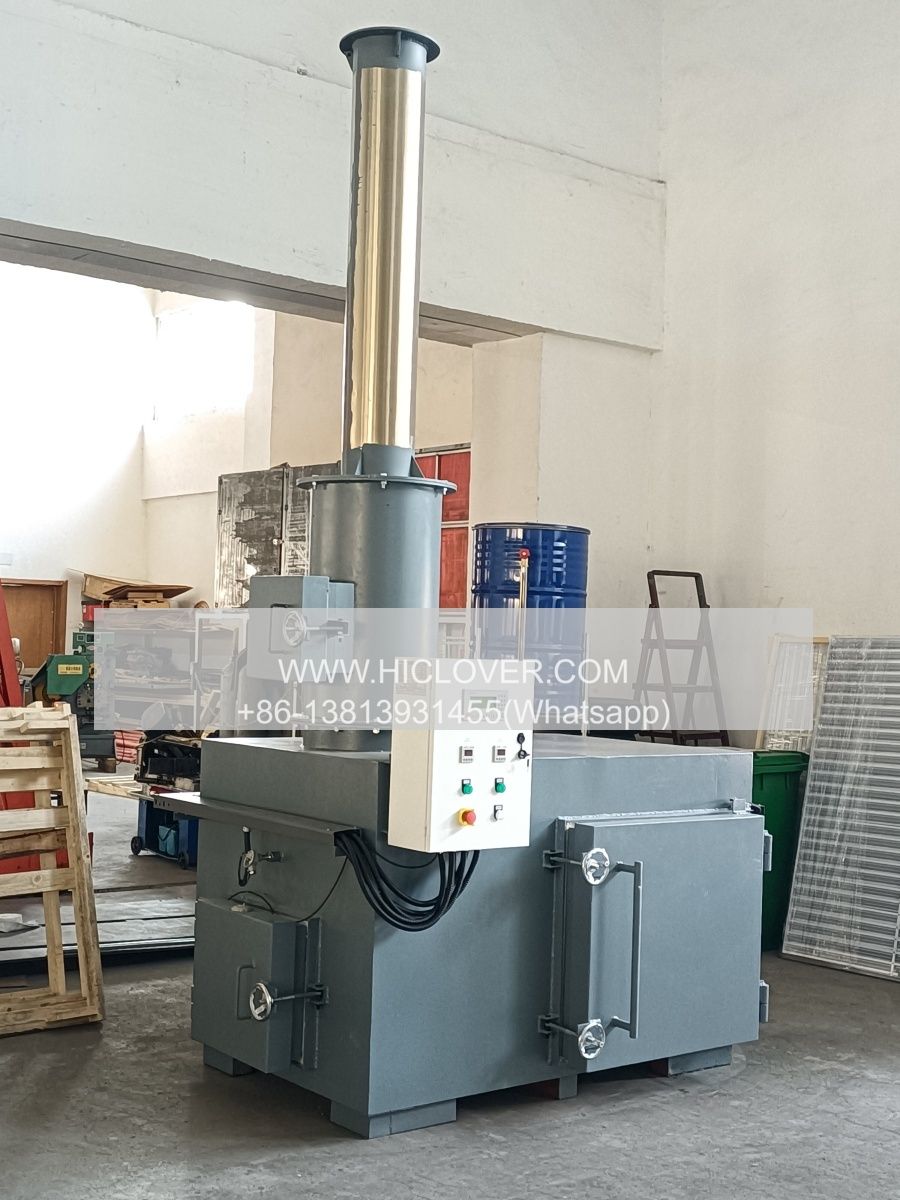

HICLOVER Incinerator Model TS30: Pioneering Efficient Waste Management

The HICLOVER Incinerator Model TS30 represents a leap forward in waste treatment technology. Designed primarily for medical waste incineration, this machine is engineered to address the unique challenges of safely disposing of hazardous and non-hazardous waste in environments such as hospitals, clinics, and animal crematoriums.

Overview and Key Features

At the heart of the TS30 is an advanced Programmable Logic Controller (PLC) that enables intelligent and automatic operations. This automation ensures that the incinerator adapts to different waste types, adjusts combustion times accordingly, and self-terminates operations if temperature thresholds are exceeded—all critical for maintaining safety and efficiency.

Key features include:

• Dual Combustion Chambers:
  • Primary Chamber: With a capacity of 330 liters and internal dimensions of 75x75x60 cm, it initiates high-temperature combustion (800℃–1000℃) to effectively break down waste.
  • Secondary Chamber: With a capacity of 180 liters, this chamber ensures complete combustion with temperatures reaching between 1000℃ and 1200℃ and a brief residency time of 2.0 seconds.
• Smoke Filter Chamber: A dry scrubber design minimizes emissions, resulting in virtually smoke- and odor-free operation.
• Manual Feeding with Automated Control: While the TS30 employs manual feeding, its PLC control and digital temperature displays ensure precise and safe operation.

Technical Specifications

The TS30 is optimized for a balanced mix of performance and energy efficiency:

• Burn Rate: Averages between 30–50 kg/hour, making it ideal for facilities with moderate waste volumes.
• Feed Capacity: Designed to accommodate an average of 60 kg per feeding cycle.
• Electrical and Power Ratings: Operates on 220V with a power requirement of 0.5 kW (other documents note variants with 1.0 kW, based on configuration).
• Fuel Options: Suitable for oil, diesel, natural gas, or LPG, providing flexibility based on local fuel availability and regulatory requirements.
• Consumption Metrics:
  • Oil Consumption: Typically ranges from 10.2 to 20 kg/hour.
  • Gas Consumption: Figures are provided based on the type of gas fuel used.
• Structural Dimensions:
  • External Dimensions: Approximately 175x120x140 cm.
  • Gross Weight: Varies between 3000 to 5000 kg, reflecting the robust construction of the unit.
• Additional Features:
  • Temperature monitoring through a four-digital display system.
  • Temperature protection mechanisms that automatically shut down operations if overheating is detected.
  • Optional features like an extended chimney (up to 5 meters) and oil tank capacity enhancements (up to 200 liters).

Operational Excellence and Environmental Impact

The dual-chamber design is key to achieving near-complete combustion, ensuring high burning efficiency (typically over 98%). The TS30’s design is aimed at reducing harmful emissions and pollutants, which is critical in settings that demand strict environmental controls. Its efficient combustion process not only optimizes fuel usage but also minimizes secondary pollution by ensuring that smoke and odors are effectively filtered.

Safety is paramount: the integrated temperature protection feature prevents accidents by halting combustion when temperatures exceed safe levels, while the automated PLC system continuously monitors operating conditions to maintain optimal performance.

Applications and Market Relevance

The versatility of the HICLOVER TS30 makes it suitable for a range of applications:

• Medical Waste Incineration: Ideal for hospitals and clinics dealing with biohazardous and non-hazardous waste, ensuring that infectious materials are safely destroyed.
• Animal Cremation: Its efficient burning mechanism is well-suited for pet cremation services.
• Small-Scale Industrial Use: Particularly in environments where waste volumes are moderate but require reliable, continuous processing.
• COVID-19 Waste Management: During health crises, the TS30’s rapid burn rate and high efficiency play a critical role in safely disposing of contaminated waste.

Conclusion

The HICLOVER Incinerator Model TS30 is a standout solution in modern waste management. Its blend of smart control technology, robust construction, and eco-friendly operational design makes it an ideal choice for facilities requiring safe, efficient, and compliant waste disposal methods. By ensuring complete combustion and minimizing environmental impact, the TS30 not only meets but exceeds the rigorous demands of today’s waste management challenges.

For further details and inquiries, you can explore more about HICLOVER’s product range on their official website.
